Product Details
Place of Origin: Shenzhen China
Brand Name: Sunled
Certification: CE RIHS LVD EMS
Model Number: SL-SM322D
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 200pcs
Packaging Details: 67*45*26cm
Product: |
Samsung Tv Backlight 32inch 2D |
Led QTY: |
44leds |
Temperature: |
15000K |
Material: |
Aluminum |
Product: |
Samsung Tv Backlight 32inch 2D |
Led QTY: |
44leds |
Temperature: |
15000K |
Material: |
Aluminum |

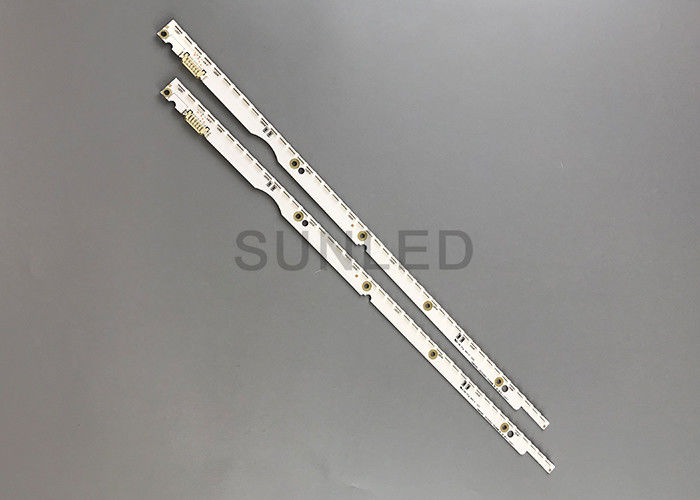

Led Samsung tv backlight Samsung 2012VS32 7032NNB 44 2D REV1.1 120317
|
Lamp Body Material:
|
Aluminum
|
|
LED Source:
|
SMD 7030
|
|
Input Currenton(mA):
|
350ma
|
|
Voltage per LED:
|
3.0~3.3V
|
| Led QTY | 44leds |
|
Lamp Luminous Flux(lm):
|
90~130lm/LED
|
|
CRI (Ra>):
|
80
|
|
Emitting Color:
|
White |
|
Color Temperature(CCT):
|
15000K |
|
Working Lifetime(Hour):
|
≥20,000 Hours(in test condition)
|
|
Working Temperature(℃):
|
-28℃~75℃
|
|
Quality Grade:
|
AAAA,AAAAA
|
The product uses an original lens. There are high quality original LED beads, heat sinking aluminum substrates and fiberglass panels. The glue has a high viscosity, so that the lens does not fall off easily.
LED backlighting also enables color and chromaticity adjustment in different areas outside the CCFL for more accurate color reproduction, dynamically correcting brightness and contrast for better picture quality.
