Product Details
Place of Origin: China
Brand Name: SUNLED
Certification: CE ROHS
Model Number: SL00640F
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 200set
Packaging Details: 72*44*28cm 300pcs each carton
Delivery Time: 7-15workdays
Payment Terms: T/T, Western Union
Product Name: |
Samsung TV Backlights |
Voltage: |
3v/led |
Power: |
1w/led |
Color: |
Cold White |
Size: |
40inch |
CRI: |
80 |
Led QTY: |
8LEDS And 5leds |
Led Chip: |
Smd2835 |
Warranty: |
3years |
Product Name: |
Samsung TV Backlights |
Voltage: |
3v/led |
Power: |
1w/led |
Color: |
Cold White |
Size: |
40inch |
CRI: |
80 |
Led QTY: |
8LEDS And 5leds |
Led Chip: |
Smd2835 |
Warranty: |
3years |

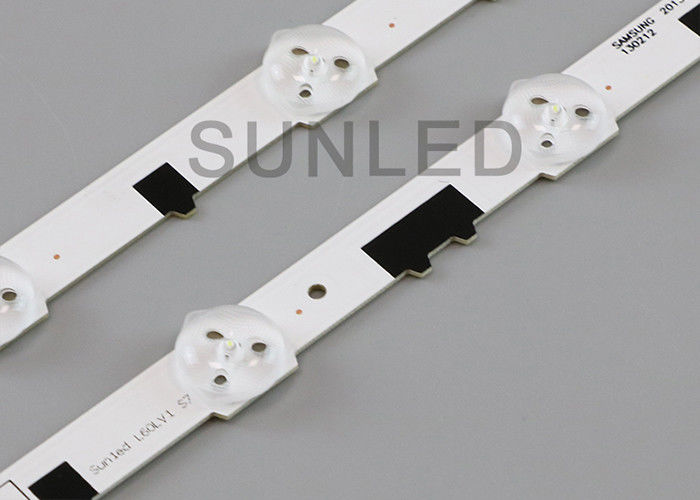

Samsung 40inch TV backlights 40f smd 2835 led lens 3v/led Copper PCB
Lamp number:13 leds (A5 leds +B8 leds)
L*W:R/5LED 315MM *12MM
L/8LED 515MM *12MM
1 set contain (7A+7B), 13 leds per row, A total of 7 lines.
Special Features
| size model | Lamp number | L*W | LED type | Voltage,Power | Plate |
| Samsung-32inch | 9 | 650MM*12MM | SMD2835 | 3V,1W/LED | Glassfiber |
| Samsung-40inch-R5+L8 | 13 | 830MM*12MM | SMD2835 | 3V,1W/LED | Glassfiber |
| Samsung-46inch-R6+L9 | 15 | 962MM*12MM | SMD2835 | 3V,1W/LED | Copper |
| Samsung48inch-R3+L6 | 9 | 1004MM*12MM | SMD2835 | 3V,1W/LED | Copper |
other size of samung 32inch 46inch 48inch for available
